13 Spline 4 Pad Deere Tractor Clutch 5220 5320 5420 Re211277 Re227648

Brand Name : SY

Model Number : SY-JD-11

Place of Origin : China

MOQ : 5

Price : USD 135-149 set

Payment Terms : T/T, L/C

Supply Ability : 40 set per day

Delivery Time : 5 days

Packaging Details : paper carton

color : silver

material : cast iron

spline : 19

hub : Φ31*35

style : double dry stage

Overall diameter : 280mm

weight : 32kg

OEM no. : re211277

fitment : deere

friction : cerametallic

Contact Now

made in China deere tractor 5220 5320 5420 clutch re211277 re227648 pto disc spline 13 pad 4 cerametallic

Popular product

13 Spline 4 Pad Deere Tractor Clutch 5220 5320 5420 Re211277 Re227648

A tractor which you want to walk through smoothly, so you need an excellent and stable transmission system inclucde the clutch,bearing and shaft,that is also what we work hard to deliver,a reliable matchful clutch can enchance the power of the work and make it easier and comfortable

Fit Deere tractor 50 series: 5220,5320,5420,5520

Well matching the transimssion system of deere
Cerametallic pad has better resistence character
Damping spring to reduce the impact of engaging
Double action for operating the walking and working system
Reliable and long cooperation supplier ensure the final assembly and nice price

OEM no	RE211277
Size	313113cm
Weight	32Kg
Spline	19

Disc

Clutch disc main:

OEM no.	RE177574
O.D	280mm
Hub	Ф31*35
Spline	19
Thicknesss	11
Weight	1.5Kg
Friction material	Cerametallic

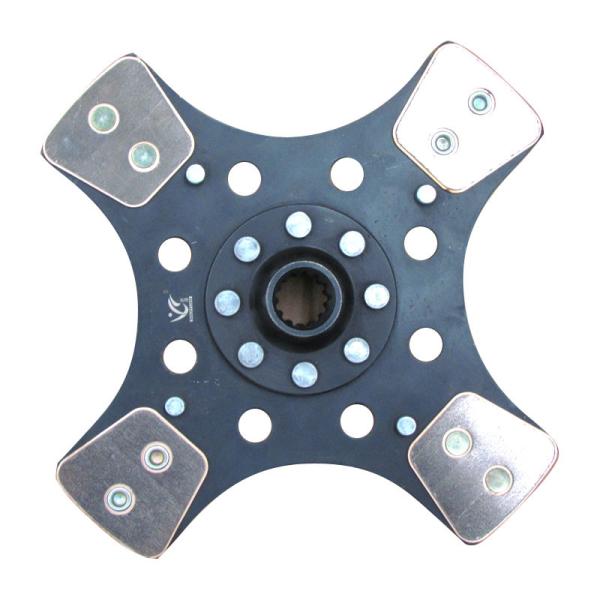

Clutch disc PTO:

OEM no.	RE227648
O.D	280mm
Hub	Ф21.5*26
Spline	13
Thicknesss	8
Weight	1.1Kg
Friction material	Cerametallic

Related parts

Housing
Weight: 12.5Kg

Belleville washer
Weight: 1Kg

Pressure plate PTO
Weight: 7Kg
